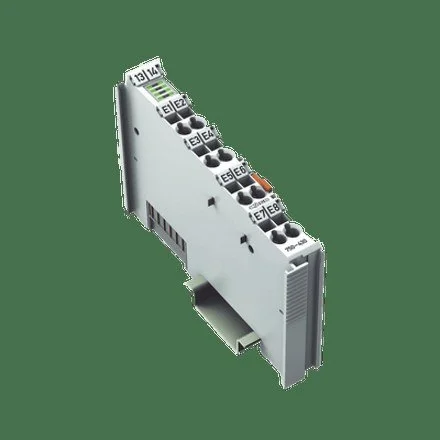

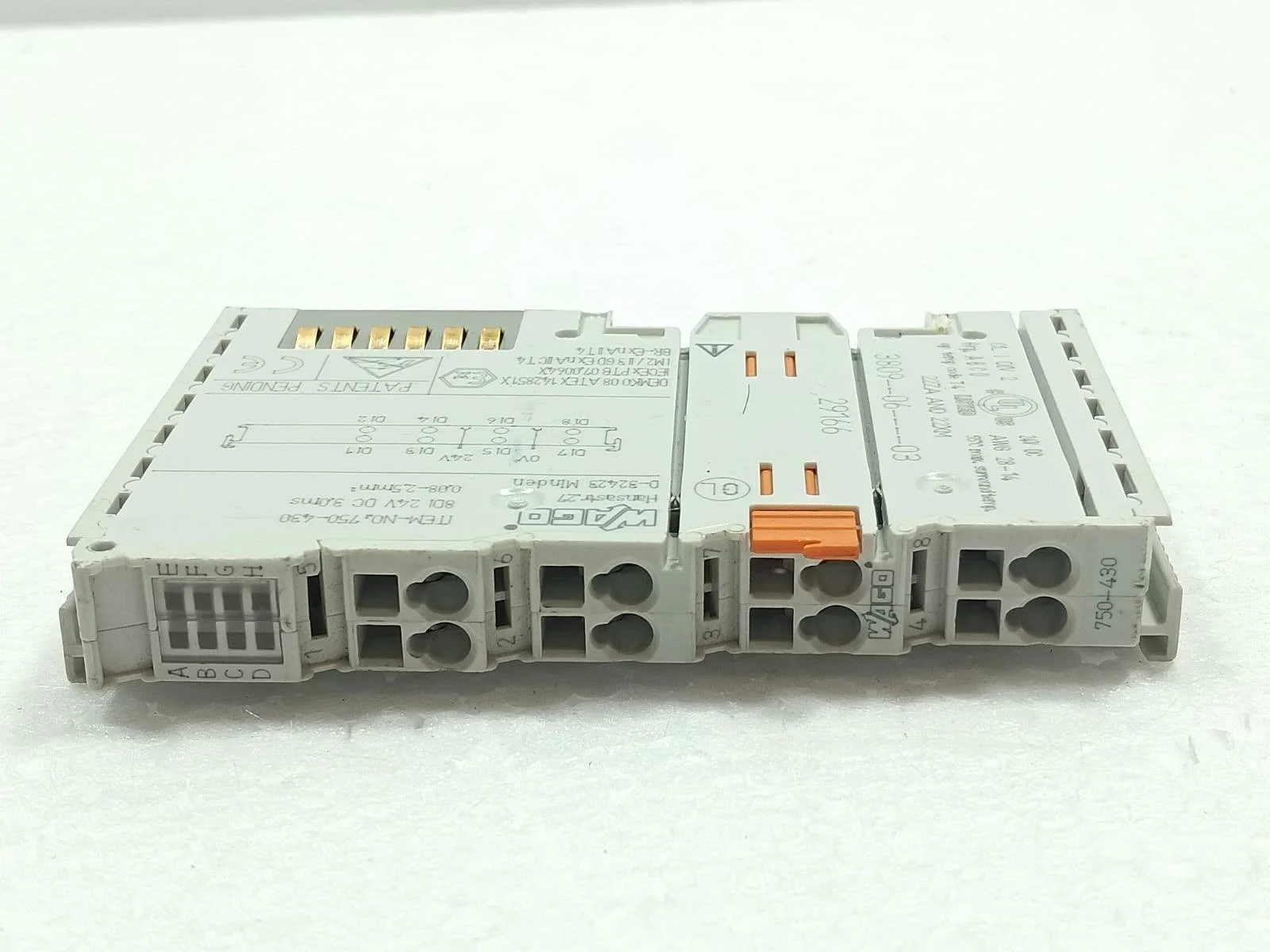

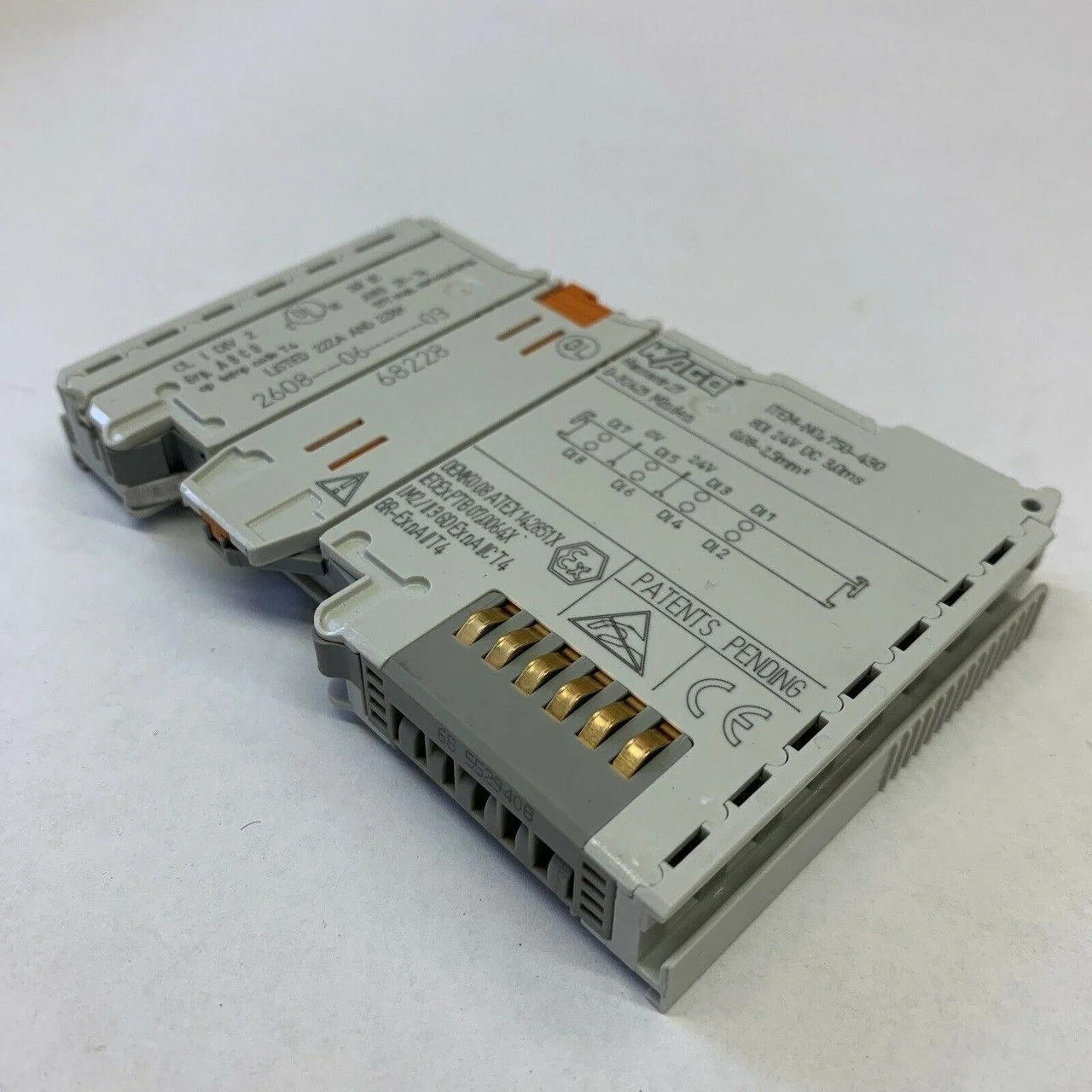

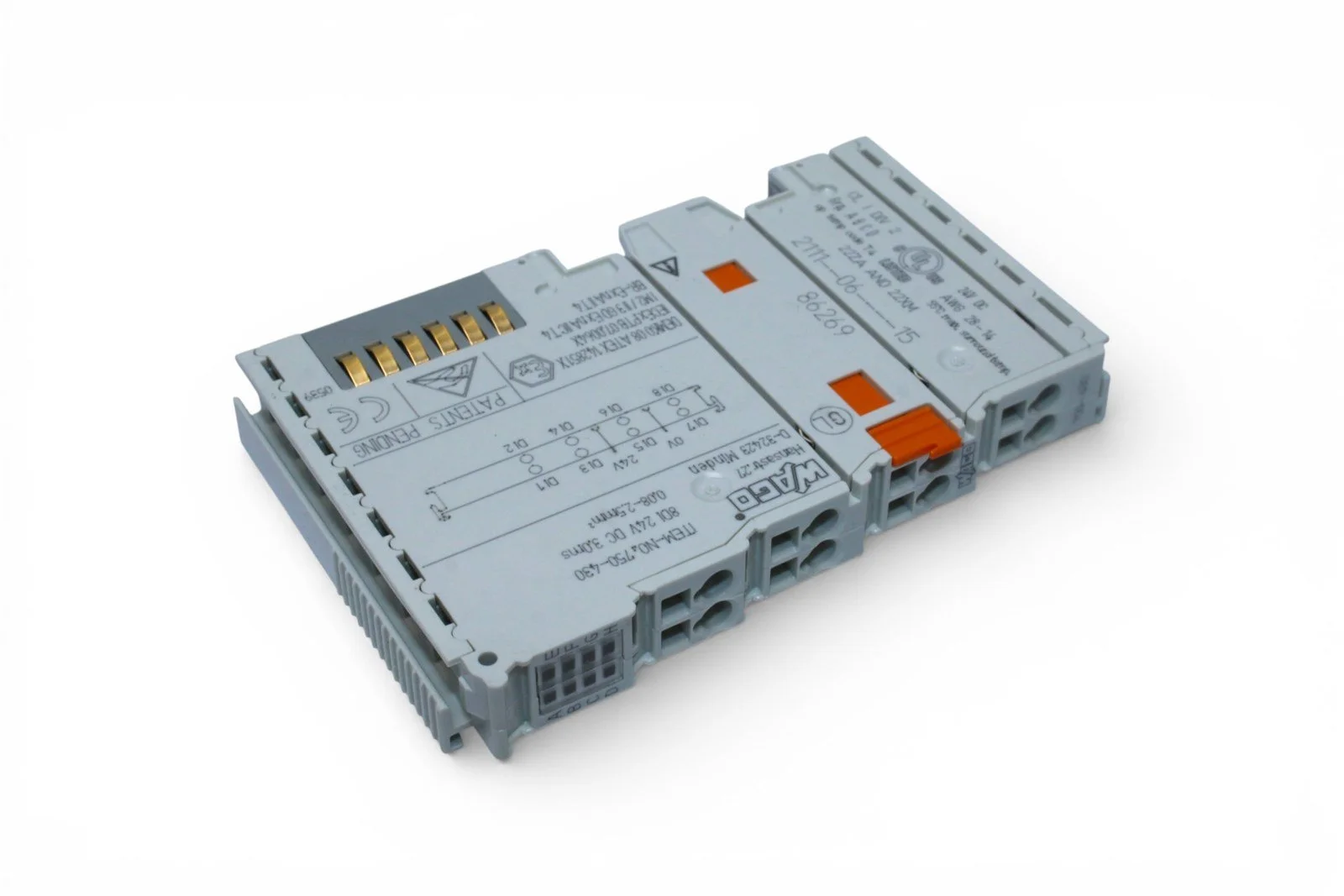

The WAGO 750-430 is an 8-channel digital input module for the WAGO I/O System 750/753. It receives control signals from digital field devices (sensors, switches, push buttons): 8 x 1-conductor inputs, 24 V DC high-side switching, 3 ms input delay (noise-rejection filter), input current 2.8 mA per channel at signal 1. Electrical isolation between field and system levels; transmits switching states to a connected WAGO fieldbus coupler or programmable controller. Maintenance-free Push-in CAGE CLAMP spring connections (copper conductors 0.08-2.5 mm2 / 28-14 AWG), green channel-status LEDs, slim 12 mm housing (12 x 64 x 100 mm), 35 mm DIN rail, IP20, 0 to +55 degC, polyamide PA66 housing UL94 V0, ~47.5 g. Fire load 0.388 MJ, overvoltage category III / pollution degree 3. Certifications: Demko, Atex, PTB 07.0064X, IM2/II 3 GD, Ex Na IIC T4, Class I Div 2 Groups A-D, UL E175199, CE. Ideal for PLC control, industrial automation, sensor and machinery monitoring. WAGO P/N 38887106/000. Brand new unit.
